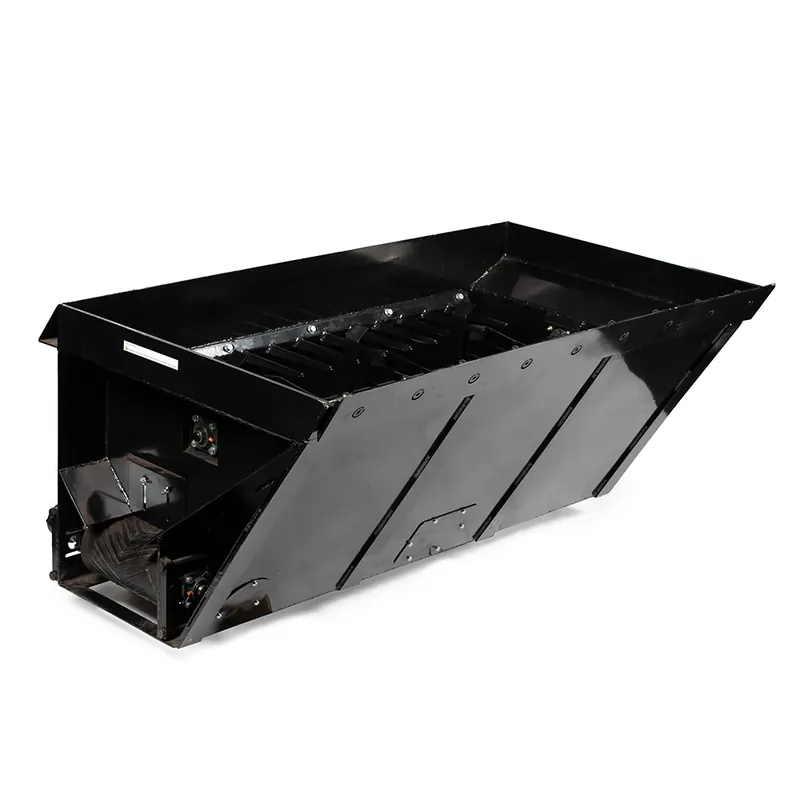

72" Side Discharge Bucket Last Chance

Product Overview

The 72″ Side Discharge Bucket allows you to spread sand and dirt allowing you to fill trenches, horse stalls, and condition topsoil. The 6 FT side discharge bucket is compatible with standard flow hydraulics and features a row of rotating agitators that help break up the material and prevent bridging.

The bucket’s edge is equipped with a bolt-on cutting edge and allows you to scoop into the material quickly. The belt will enable you to spread the material to the right or left sides. The side doors are adjustable allowing you to set them at optimal height to distribute just the right amount of material. Your engine’s RPM controls the belt and agitator speed. The hydraulic side discharge bucket is designed to fit skid steers and tractor loaders equipped with the Universal Skid Steer Style Quick Tach System.

NOTE: You must have a 3rd function valve to operate the discharge bucket.

UPDATED VERSION: We have improved the motor with higher torque and enhanced the roller system to keep the belt on track and prevent dirt from falling under the belt.

Specifications

Specifications

Overall Height

36-in.

Overall Width

72-in.

Overall Depth

48-in.

Cutting Edge

71-in. x 6-in.

Belt Dimensions

71-in. x 13-in.

Hydraulic Flow

Standard Flow

Material

Finish

Powder-Coated Charcoal

Material

Steel

Weight

Bucket Capacity

0.67 Cu. Yd.

Product Weight

1,100 lb.

Details

• ‍Universal Skid Steer Style Quick Tach System
• Compatible with standard flow hydraulics
• RPM controlled variable belt speed
• Reversible bolt-on cutting edge included
• 12 steel rotating agitators
• Hydraulic hoses and flat-faced couplers included

REPLACEMENT PARTS

• 114239 – 72″ Side Discharge Bucket Replacement Belt

View Product Manual
