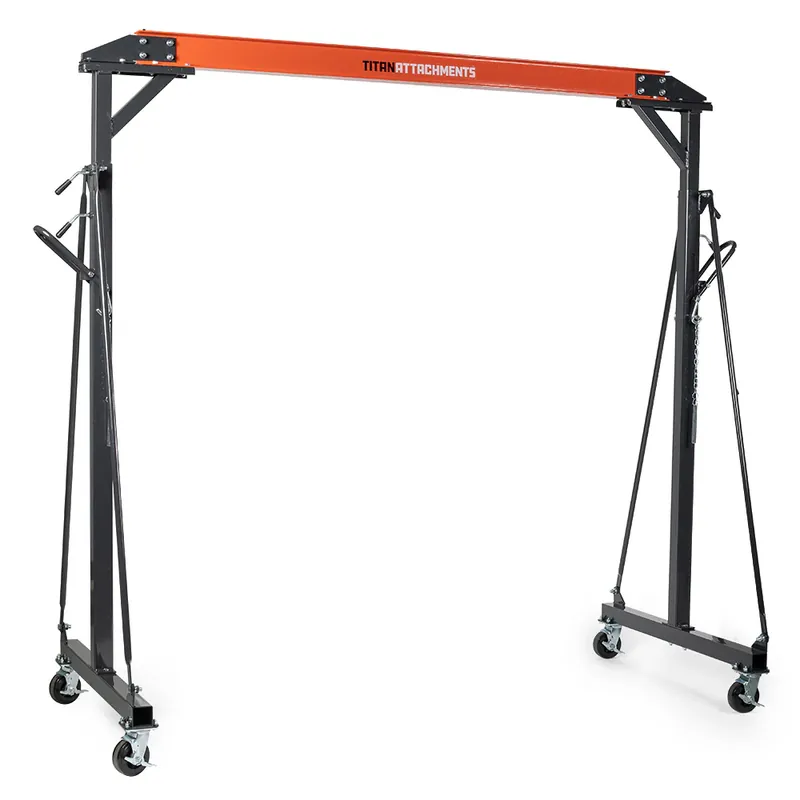

Adjustable Rolling Gantry Crane Hoist Time-Limited

Choose Lift Capacity:1 Ton (2,000 LB)
This 1 Ton Gantry Crane offers an adjustable height of up to 12 FT—ideal for warehouses, machine shops, and indoor and outdoor use. Connection Type : Other

Product Overview

Available in a 1 ton or 2 ton weight capacity, this adjustable gantry crane goes where forklifts can’t and is ideal for lifting and lowering heavy loads in warehouses, machine shops, and worksites.

This portable gantry crane is lightweight but durable with a heavy-duty I-beam and locking 360-degree caster wheels for transporting it anywhere you need to use it. Adjust the height up to 12 FT. Simply raise or lower your crane, then pin it in place with the lockable notches.

NOTE: This model requires two people to make height adjustments and should not be moved under load. A 102″ minimum height is required for clearance. Trolley sold separately.

Specifications

Specifications

Adjustable Height

8 FT – 12 FT (96-in. to 144-in.)

Overall Width

98.5-in.

Overall Depth

47.25-in.

I-Beam Length

86-in.

I-Beam Dimensions

4.75-in. x 3-in.

Support Arms

72-in. x 1.125-in.

Pump Handle

13.25-in. x 0.875-in.

Lock Pins

6-in. x 1-in.

Hole Spacing

4-in.

Casters

5-in. x 2-in.

Material

Finish

Powder-Coated Charcoal/Orange

Material

2.75-in Steel Tubes

Weight

Lift Capacity

1 Ton (2,000 lb.)

Product Weight

317 lb.

Details

• Adjustable height
• Locking pins system
• Locking caster wheels
• All-steel construction
• Heavy-duty steel I-beam
• 102″ minimum height required for clearance

OPTIONAL ACCESSORIES:

• 840072 – 1 Ton Push Trolly
• 840073 – 2 Ton Push Trolly

View Product Manual
