Crafted HD Hay Frame Attachment, Fits John Deere Global Euro

Choose Number of Hay Spears:2—–Choose Hay Spear Length:Frame + 39″ Spear
The Hay Frame holds a 4,000 LB rating and includes two 39″ hay spears.Connection Type : Global Euro

Product Overview

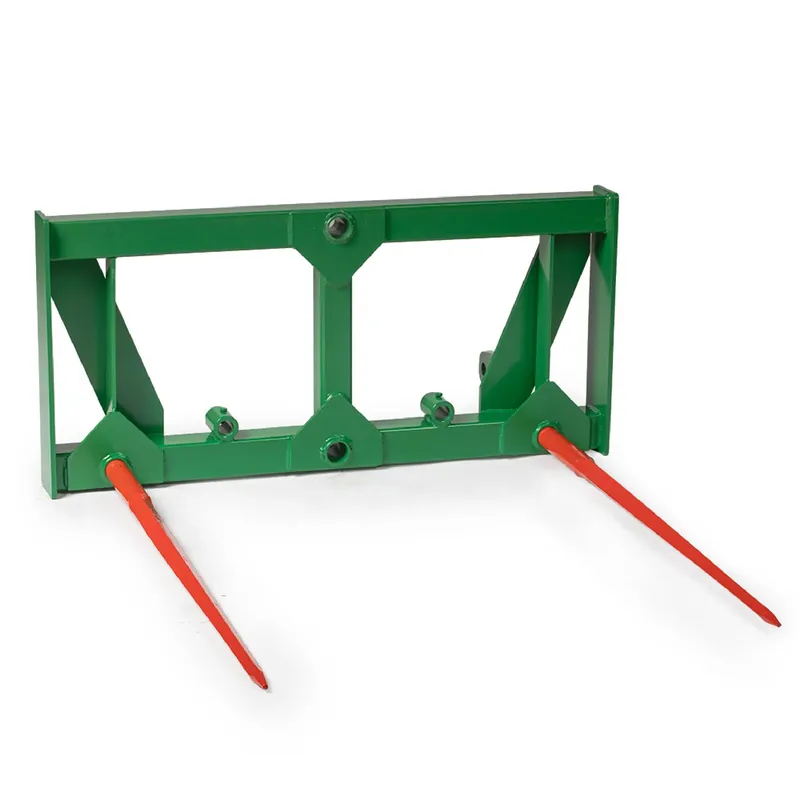

This Hay Frame Attachment is designed to fit John Deere tractors equipped with the Global style mounting system, also known as the Euro mounting system. The hay frame attachment boasts a 4,000 LB load capacity and a backguard-free design for optimal spear placement visibility. With four Conus 2 sleeves, two stabilizer sleeves, and a sleek powder-coat finish, this durable frame supports hay bale spears. Its robust weight capacity enables easy movement and stacking of multiple hay bales, round or square. A valuable tool for feeding horses, cows, and other animals on the farm or ranch.

NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.

Specifications

Specifications

Frame Overall Height

23.5-in.

Frame Overall Width

46-in.

Frame Overall Depth

9-in.

Main Spear Sleeve

Conus 2

Main Spear Overall Length

39-in.

Main Spear Diameter

1.75-in. tapered

Frame Finish

Powder-Coated Green

Material

3-in. Steel Tubing

Frame Weight Capacity

4,000 lb.

Spear Weight Capacity

3,000 lb.

Main Spear Weight

18 lb.

Frame Weight

142 lb.

Details

• ‍Fits John Deere Global Euro style mounting
• Designed to move hay bales around the farm or ranch
• Four Conus 2 hay sleeves and two stabilizer sleeves are installed
• Frame supports up to 4,000 LB load capacity
• Includes two Conus 2 Hay Bale Spears
• Does NOT fit loaders equipped with John Deere Quick Tach, or universal Skid Steer style mounts
