Factory Price Fork Mounted Adjustable Grapple

Product Overview

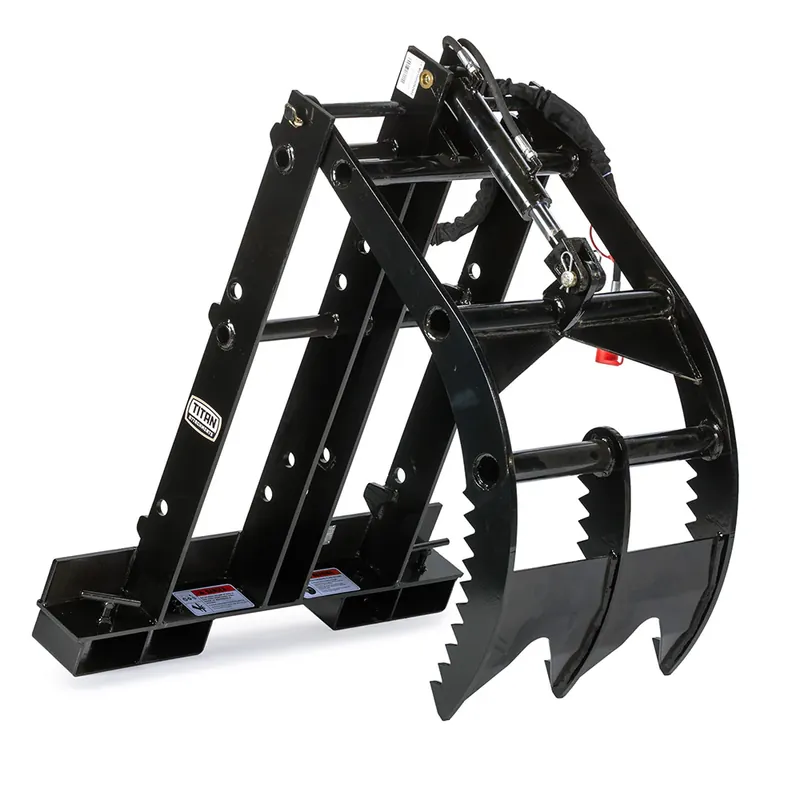

This pallet fork grapple attachment mounts to your pallet forks with two built-in clamps to make moving logs, hay bales, tree limbs, and palletized materials easier and more secure. Designed to keep loads steady during transport, the inside and outside fork slots let you pair the grapple with your pallet fork blades to grab smaller and uneven items, giving you better control while you work.

With three adjustable height settings (74″, 51″, and 32″) you can quickly set up for your job using a simple pivot pin. Installation is fast and easy with the included hydraulic hoses.

Specifications

Specifications

Top Grapple Height Setting

74-in.

Middle Grapple Height Setting

51-in.

Bottom Grapple Height Setting

32-in.

Overall Grapple Width

25-in.

Tine Length

36-in.

Tine Thickness

0.625-in.

Inside Fork Pocket

20.5-in. Center-to-Center

Outside Fork Pocket

33.5-in. Center-to-Center

Fork Pocket Dimensions

6.25-in. x 3-in.

Material

Finish

Powder-Coated Charcoal

Material

Steel

Weight

Product Weight

414 lb.

Details

• ‍Single serrated steel grapple
• ‍3 adjustable height settings with quick pivot pin adjustment
• ‍Inside and outside fork slots for handling smaller loads
• ‍Two built-in clamps for secure attachment
• ‍3,000 PSI hydraulic cylinder
• ‍Flat-faced couplers and hoses included

REPLACMENT PARTS

• 111319 – Replacement Cylinder for Fork Mounted Adjustable Grapple

View Product Manual
