Free Returns Tuff Torq – 787Q0024091 – K58G – For MTD – Cub Cadet/Troy-Bilt/Craftsman – 618-07233
Original price was: $1,204.40.$481.76Current price is: $481.76.
Genuine OEM Tuff Torq – 787Q0024091 – K58G
Replaces the Following:
MTD – Cub Cadet/Troy-Bilt/Craftsman – 618-07233
K58

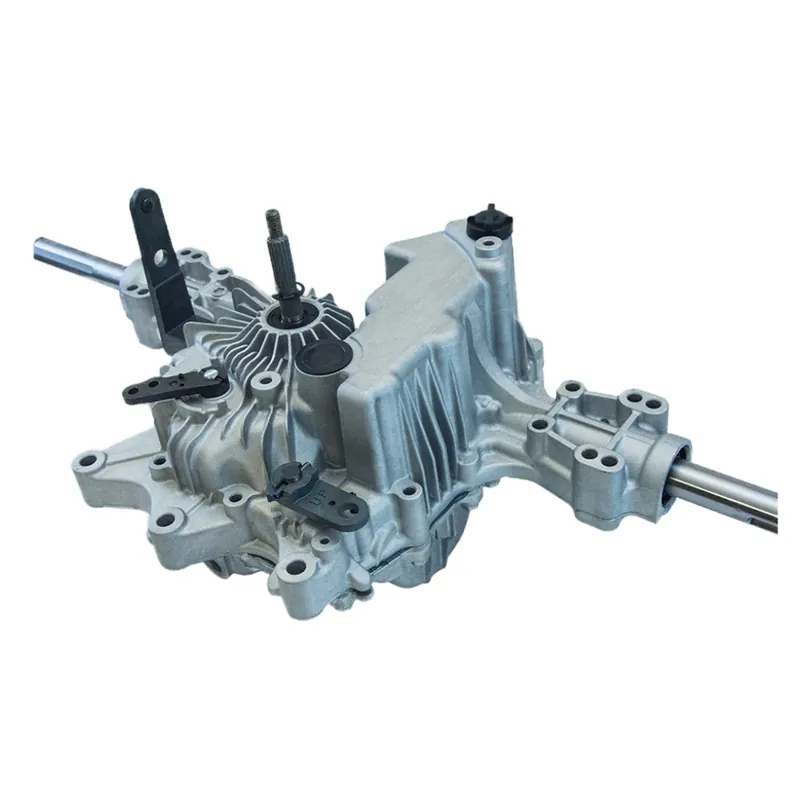

Note: Your unit may look different. The picture is a stock photo of the K58 Series.
Manufacturer ID: K58
TheK58is the next step up into the work tractor applications. Still light and compact for easy integration in most projects, theK58is packed with upgraded materials and unique features to make it the most robust transaxle in theResidentialline. These units are engineered for the higher demands of estate tractors and small garden tractors, including; heavier weight tractors, better speed and response, auxiliary hydraulics support, ground-engaging equipment support and much more.
Features
- Patented L.O.G.I.C. case design for easy installation, reliability and serviceability.
- Internal wet disk brake system.
- Reversible output/control lever operating logic for application optimization.
- Smooth operation for either foot or hand control system.
Specifications
|
Specification |
Value |
Units |
|
Application |
Rear Engine Riding Mower |
|
|
Reduction Ratio |
31.44:1 |
|
|
Axle Torque (Rated) |
294 (217) |
Nm (lb-ft) |
|
Max. Tire Diameter |
584 (23) |
mm (in) |
|
Brake Capacity |
470 (347) |
Nm (lb-ft) *@350 N (79 lb) Brake arm force |
|
Displacement (Pump/Motor) |
7/10 |
cc/rev |
|
Max. Input Speed |
3,400 |
rpm |
|
Axle Shaft Size |
25.4 (1.0) |
mm (in) |
|
Weight (dry) |
15.3 (33.7) |
kg (lb) |
|
Brake Type |
Internal Wet Disc |
|
|
Housing (Case) |
Die-Cast Aluminum |
|
|
Gears |
Heat-treated Steel Gears |
|
|
Differential |
Automotive-type Bevel Gears |
|
|
Speed Control System |
Foot Control: External shock absorber available option |
|
|
Bypass Valve (Roll Release) |
Standard |
|
|
Hydraulic Fluid Type |
Proprietary Tuff Torq Tuff Tech drive fluid recommended. (Contact OEM for other options) |
