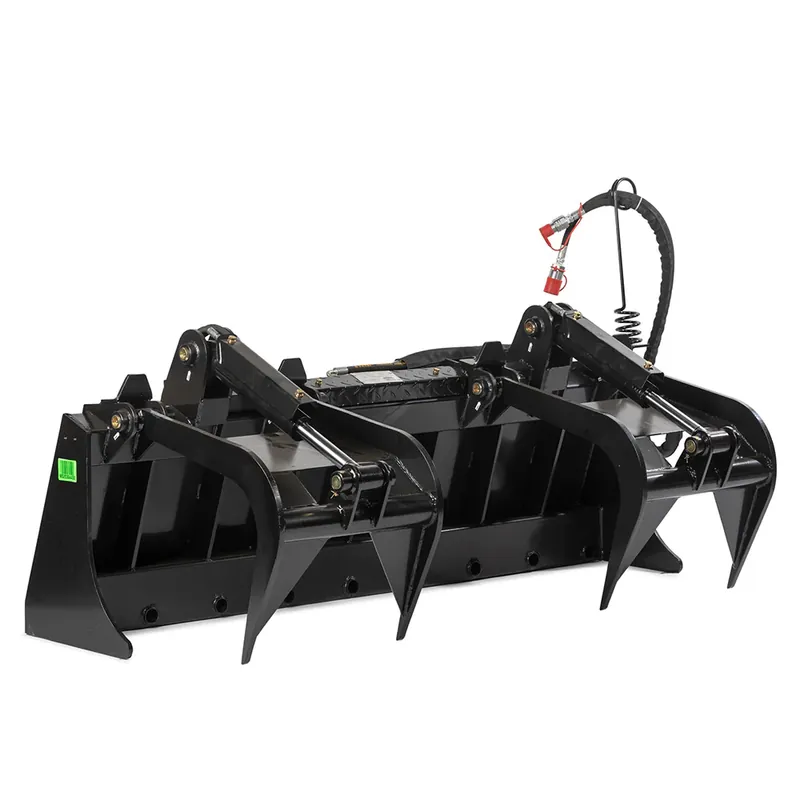

Genuine Scratch and Dent, 72" Manure Tine Grapple Bucket Attachment

Product Overview

* Scratch and Dent items are not eligible for returns or warranty claims. *

* Scratch and Dent Deal – item may have cosmetic damage *

Easily handle hay bales, brush, logs, and more without switching implements. This attachment combines the strength of a hay spear frame with the functionality of a grapple rake – perfect for land clearing, moving livestock feed, and maintaining farmland. With an SSQA hookup and twin 3,000 PSI cylinders, it delivers strong, reliable performance to any loader equipped with a universal skid steer mounting system.

This heavy-duty hay spear frame is compatible with Conus 1 spears with an impressive 1,350 LB capacity each. Rake up bales, logs and other materials quickly, then clamp down for a secure hold with sturdy twin grapple arms. This attachment has a 30″ opening height for an easy grip and includes greaseable pins and bushings for smooth operation. This model comes complete with hydraulic hoses, hose springs, flat-faced couplers, and cylinder back stoppers to prevent hyperextension.

NOTE: A phone number is required to schedule delivery.

Specifications

Specifications

Opening Height

30-in.

Overall Width

72-in.

Side Thickness

1/2-in.

Main Spear Sleeve

Conus 1

Material

Finish

Powder-Coated Black

Material

Steel

Weight

Spear Weight Capacity

1,350 lb.

Product Weight

750 lb.

Details

• Universal skid steer style hookup
• Twin 3,000 PSI cylinders
• Hoses and flat-faced couplers are included
• Greasable pins and bushings
• Cylinder back stoppers
• Hose spring
• Accepts C1 hay bale spears (sold separate)

View Product Manual
