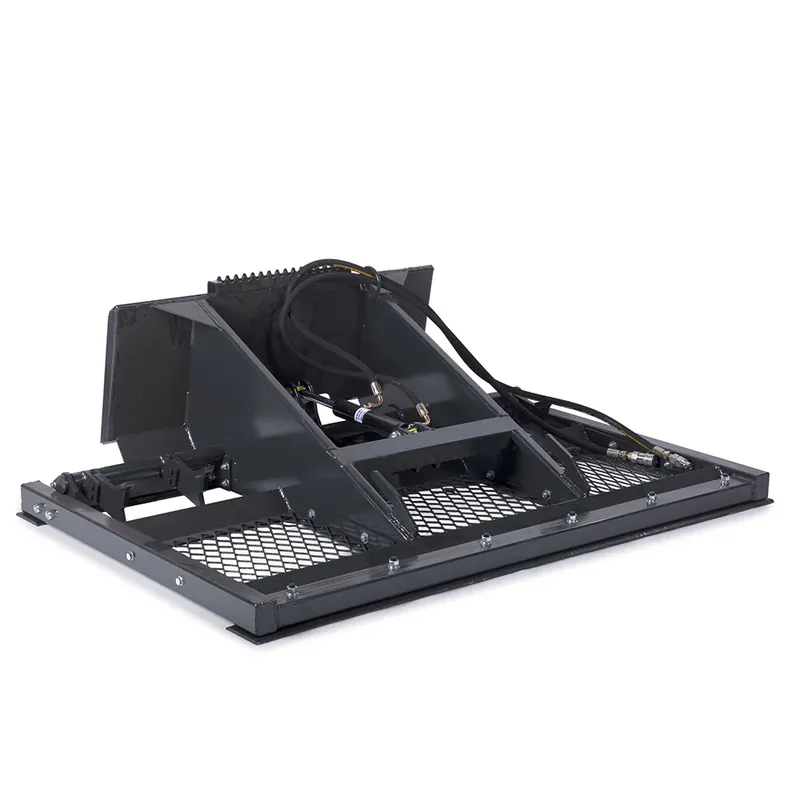

Get Yours Skid Steer Land Plane with Hydraulic Shanks

Choose Plane Width:72″—–Choose Optional Comb:No
The SSQA Hydraulic Land Plane uses cab-controlled hydraulic shanks to loosen material, then levels the surface for a smooth finish—available with or without comb.Connection Type : Universal Skid Steer Quick Tach

Product Overview

Break up hard-packed ground and smooth uneven terrain with the SSQA Hydraulic Land Plane—compatible with any skid steer with a universal skid steer mount. This attachment is ideal for ripping compacted soil in fields, restoring rutted gravel driveways, and filling potholes in parking lots.

Hydraulic controls allow you to raise or lower the shanks from the comfort of your cab, letting you quickly switch between ripping and leveling. Lower the shanks to loosen compacted material, then use the replaceable bolt-on cutting edges to create a smooth, even finish.

The reinforced steel frame is designed to handle tough grading conditions and has a bolt-on mesh screen to help sift and distribute material evenly for surface consistency. Integrated storage hooks provide a convenient place to keep your bucket when switching attachments. This land plane is available with or without a comb to break up clumps before leveling.

Specifications

Specifications

Overall Height

24-in.

Overall Width

72-in.

Overall Depth

51-in.

Max Ripper Depth

4-in.

Ripper Shank Dimensions

8-in. x 5.5-in. x 1.25-in.

Material

Bolt-On Cutting Edge Dimensions

72-in. x 0.5-in.

Finish

Powder-Coated Charcoal

Material

Heavy-Duty Steel

Weight

Product Weight

617 lb.

Details

• Fits universal skid steer quick tach
• Hydraulically controlled, reversable shanks
• Bolt-on mesh sift screen
• Bolt-on replaceable cutting edges
• Optional bolt-on comb
• Heavy-duty, reinforced steel frame
• Hydraulic cylinder, hoses & flat-face couplers included

REPLACEMENT PARTS

• 199116 – 72″ Cutting Edge Blade
• 199117 – 84″ Cutting Edge Blade
• 199110 – 72″ Plane Comb
• 199111 – 84″ Plane Comb

View Product Manual
