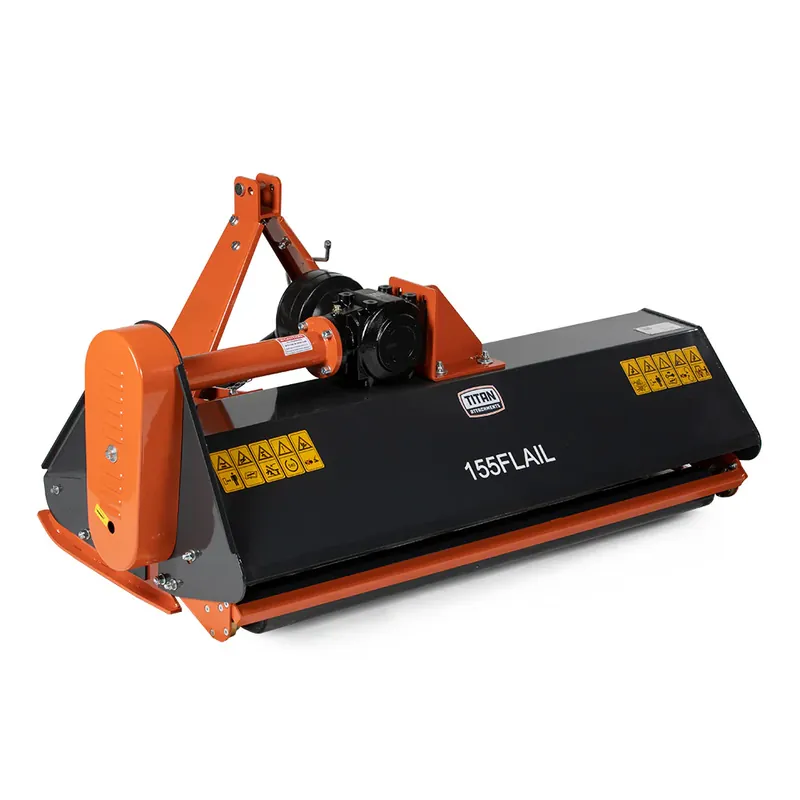

Latest 3 Point Flail Mowers

Choose Color:Charcoal—–Choose Cutting Width:60″
Tackle overgrown brush and vines effortlessly with this Cat 1 flail mower attachment.Connection Type : 3 Point Hitch

Product Overview

This heavy-duty 3 point flail mower efficiently handles vegetation up to 3 inches thick, making quick work of grass, brush, and vines. The forged hammer flail blades deliver precise cuts while mulching debris into fine particles that naturally fertilize your soil. Compatible with Cat 1 tractors between 30-60 HP, this PTO-powered attachment features an adjustable rear roller for consistent cutting height across uneven terrain. Perfect for maintaining fields, orchards, and vineyards while minimizing dangerous projectile debris.

This Cat 1 mower uses a 3 Point hitch for easy installation and is powered by your machine’s PTO. For optimum power and capability, we recommend using a tractor with a minimum of 30 HP and a maximum of 60 HP.

Specifications

Specifications

Cutting Width

60-in.

Overall Width

65.5-in.

Roller Diameter

4-in.

Rotor Shaft Diameter

4.5-in.

Blade Swing

14-in.

Number of Belts

3

3PT Center To Center Bottom Pins

23.5-in.

3PT Top Link Pin To Bottom Pins

20-in.

Side Plate Thickness

0.25-in.

Power

Recommended for Tractors

30 HP – 60 HP

Minimum Power

30 HP

Gearbox Rating

65 HP

Material

Finish

Powder-Coated Charcoal/Orange

Material

Steel

Weight

Product Weight

570 lb.

Details

• Rear-mounted tractor attachment
• Cat 1 compatible tractor accessory
• Powered by PTO shaft
• Compatible with machines 30 – 60 HP
• Max gearbox rating of 65 HP
• Replaceable forged hammer blades
• Adjustable rear roller
• Front safety chains
• Sealed tapered roller rotor bearings
• Kickstand for easy storage

REPLACEMENT PARTS:

• 191467 – 5 Pack 3.5″ Wide Flail Hammer Blades
• 191537 – 4 Pair Set Y Blades
• 191597 – 31.5″ PTO Shaft with Shear Bolt
• 191609 – Replacement Belts
• 191725 – Replacement Gearbox

View Product Manual
