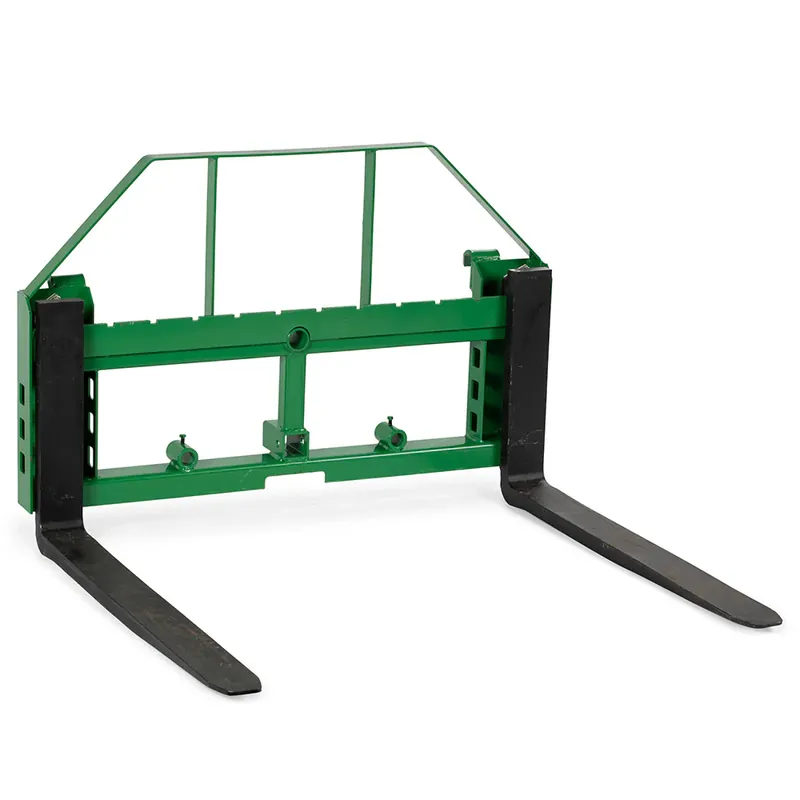

Markdown Standard Series Pallet Fork Frame Attachment, Fits John Deere

Choose Optional Pallet Fork Blades. Forks and Frames May Ship Separately.:Frame + 36″ Blades
This Standard Series Pallet Fork Frame comes with two 36″ Class II fork blades.Connection Type : John Deere Hook & Pin

Product Overview

The Titan Attachments Standard Series Pallet Fork Frame Attachment triples as a fork frame, hay frame, and lightweight towing hitch. Attach it to any John Deere quick attach tractor for a secure and simple connection.

This pallet fork frame features a slotted carriage bar for mounting Class II pallet fork blades for moving pallets, feed, and other materials. It also has welded sleeves for installing Conus 2 hay spears (sold separately) and a 2″ receiver hitch for tackling lightweight towing tasks.

Rated at 4,000 LB, this pallet fork frame has a higher weight capacity than the Economy Series frame and includes a see-through headache rack for durability and better visibility.

Specifications

Specifications

Frame Height

29.5-in.

Frame Width

50-in.

Frame Depth

6.5-in.

Fork Length

36-in.

Fork Width

4-in.

Fork Thickness

1.25-in.

Pallet Fork Blades

Class 2

Upper to Lower Rail

16-in.

Main Spear Sleeve

Conus 2

Receiver Hitch Dimensions

2-in. x 2-in.

Material

Finish

Powder-Coated Green

Material

Steel

Weight

Frame Weight Capacity

4,000 lb.

Frame Weight Capacity

4,000 lb.

Fork Pair Weight

160 lb.

Frame Weight

120 lb.

Details

• ‍Hook and pin mounting style
• ‍3-in-1 fork frame for moving pallets, hay bales, and trailers
• ‍See-through headache rack
• ‍Integrated hay spear sleeves
• ‍2″ receiver hitch
• ‍Optional Class 2 pallet fork blades
• ‍Accepts Conus 2 hay bale spear (sold separately)
• ‍Accepts two stabilizer spears (sold separately)

View Product Manual
