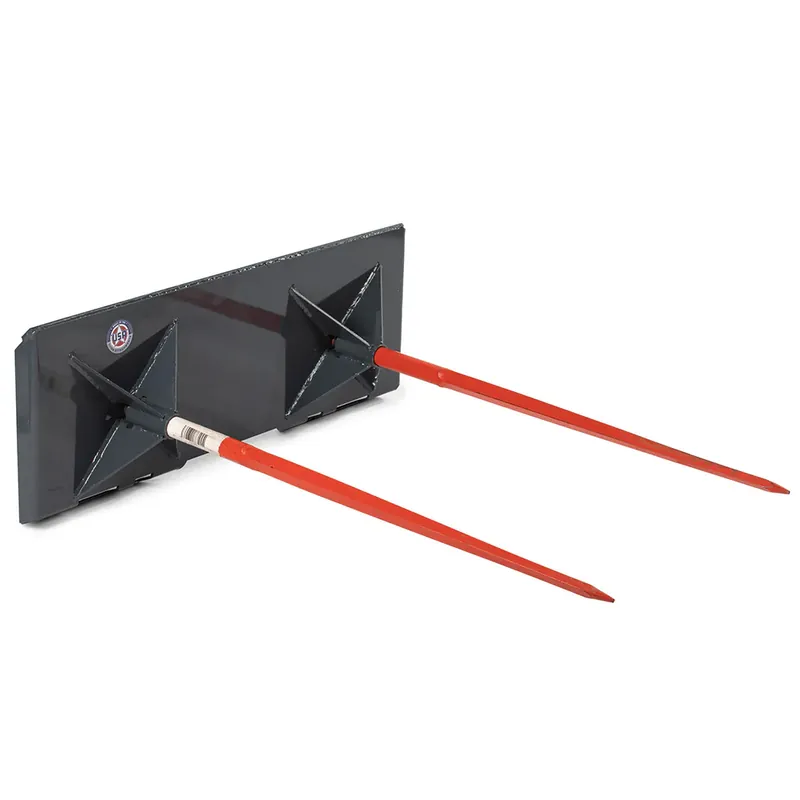

Premium USA Made Dual Prong Hay Spear Frame Attachment

Choose Optional Hay Bale Spears:Frame + 39″ Spears
The USA Made Dual Prong Hay Bale Spear Attachment is rated 4,000 LB and comes with two Conus 2 39″ hay bale spears.Connection Type : Universal Skid Steer Quick Tach

Product Overview

Designed and crafted in the USA, this dual hay frame attachment is made with top quality materials and precision workmanship for long-lasting and dependable use. Equipped with an SSQA Universal Skid Steer Connection, this frame fits all full-sized skid steers and most tractors with a quick tach system, including New Holland, Bobcat Skid Steer, and Kubota tractors. This model is available as a standalone frame with C2 spear sleeves welded to the frame or with two Conus 2 main spears included in your choice of length; perfect for moving large round or square hay bales around your property. And it’s designed without a back guard for safe and easy visibility when placing your spears into hay bales. Weighing 87 LB and built with thick, durable steel, and a rust-resistant powder coating, this hay frame has an impressive 4,000 LB capacity for lifting large hay bales.

Specifications

Specifications

Frame Height

18-in.

Frame Width

45-in.

Frame Depth

8-in.

Main Spear Overall Length

39-in.

Material

Main Spear Sleeve

Conus 2

Finish

Powder-Coated Grey

Material

0.25-in. Thick Steel

Weight

Frame Weight Capacity

4,000 lb.

Spear Weight Capacity

3,000 lb.

Main Spear Weight

20 lb.

Frame Weight

87 lb.

Details

• ‍Proudly made in the USA
• ‍Universal Skid Steer Quick Tach Mounting Style
• ‍4,000 LB load capacity
• ‍Two C2 spear sleeves welded to frame
• ‍Optional C2 hay bale spears

View Product Manual
