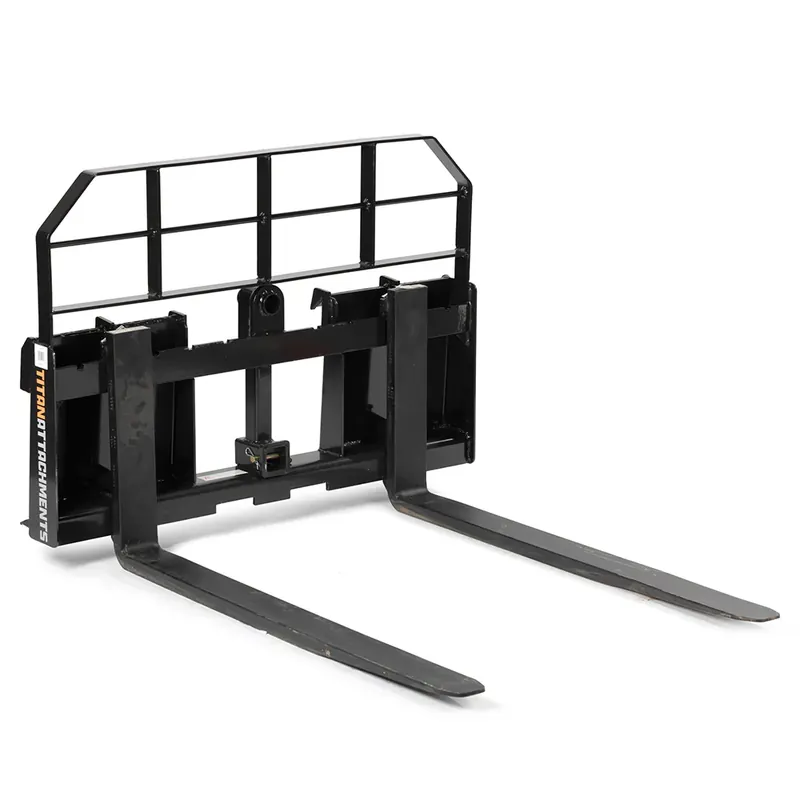

Pro Series Pallet Fork Frame Attachment One Day Deal

Choose Optional Pallet Fork Blades. Forks and Frames May Ship Separately.:Frame + 36″ Blades
The Pro Series Pallet Fork Frame comes with a pair of 36″ fork blades and attaches to your skid steer’s SSQA system.Connection Type : Universal Skid Steer Quick Tach

Product Overview

The Titan Attachments Pro Series Pallet Fork Frame Attachment is built for heavy-duty lifting up to 6,000 LB for tough tasks on jobsites, farms, and other properties. Attach this pallet fork frame to any SSQA-equipped skid steer or tractor for a secure and quick connection.

This fork frame attachment is available with or without Class II pallet fork blades for moving pallets, logs, and other materials and has a slotted carriage bar that allows you to adjust the fork placement to fit different load sizes with ease.

The frame also includes a 2″ receiver hitch and features one main Conus 2 hay spear sleeve plus two stabilizer spear sleeves. Made from durable steel, it has a reinforced headache rack for added strength and visibility while you work.

Specifications

Specifications

Frame Height

33-in.

Frame Width

48-in.

Frame Depth

8-in.

Fork Length

36-in.

Fork Width

4-in.

Fork Thickness

1.25-in.

Receiver Hitch Dimensions

2-in. x 2-in.

Upper to Lower Rail

16-in.

Main Spear Sleeve

Conus 2

Material

Finish

Powder-Coated Charcoal

Material

Steel

Weight

Frame Weight Capacity

6,000 lb.

Fork Weight Capacity

4,000 lb.

Fork Pair Weight

160 lb.

Frame Weight

195 lb.

Details

• ‍Universal skid steer quick tach mounting system
• ‍All-in-one frame for moving pallets, hay bales, and trailers
• ‍See-through headache rack
• ‍Integrated hay spear sleeves
• ‍2″ receiver hitch
• ‍Optional Class 2 pallet fork blades
• ‍Accepts Conus 2 hay bale spear (sold separately)
• ‍Accepts two stabilizer spears (sold separately)

View Product Manual
