Scratch and Dent, 1 Ton Adjustable Gantry Crane Today Only

Product Overview

* Scratch and Dent items are not eligible for returns or warranty claims. *
* Scratch and Dent Deal – item may have cosmetic damage and/or missing hardware *

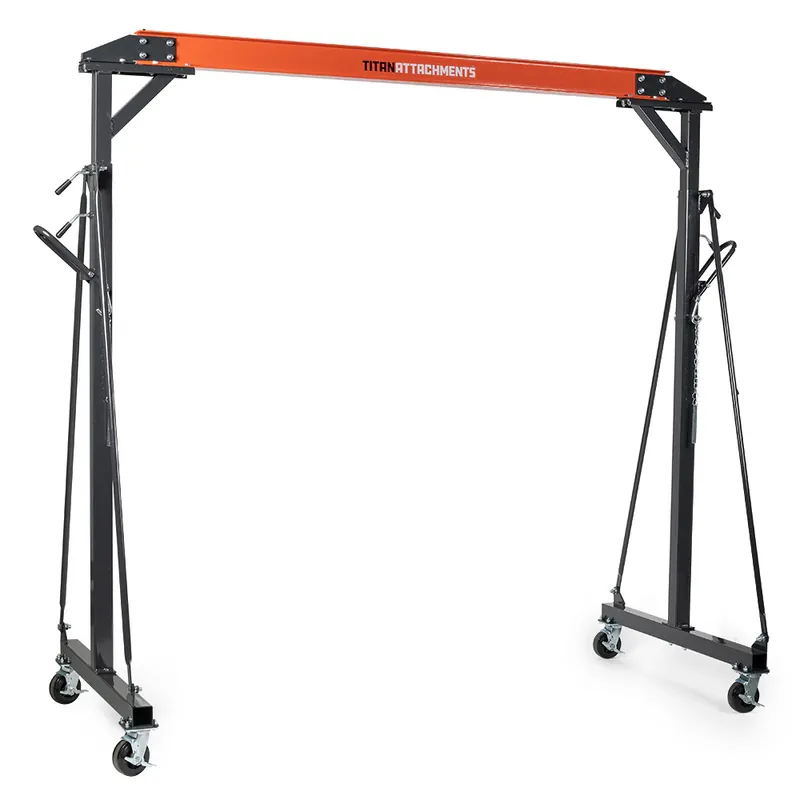

This adjustable gantry crane makes easy work of lifting and lowering heavy objects up to 12 FT with a pin and notches system for precise and effortless height adjustments. Available in a 1 ton or 2 ton weight capacity, this gantry crane goes where forklifts can’t and is ideal for lifting heavy loads in warehouses, machine shops, at worksites, or anywhere you might need help lifting a heavy object – as well as navigating under low-clearance areas. Simply lift or lower your crane, then pin it in place with the lockable notches. Built with all-steel construction and a heavy duty I-Beam, this portable gantry crane is lightweight but durable with locking caster wheels swivel 360-degrees for transporting it anywhere you need to use it, indoors or outdoors. (NOTE: This model requires two people to make height adjustments and should not be moved when under load. A 102″ minimum height is required for clearance. Trolley sold separately.)

Specifications

Specifications

Adjustable Height

8 FT – 12 FT (96-in. to 144-in.)

Overall Width

98.5-in.

Overall Depth

47.25-in.

I-Beam Length

86-in.

I-Beam Dimensions

4.75-in. x 3-in.

Support Arms

72-in. x 1.125-in.

Pump Handle

13.25-in. x 0.875-in.

Lock Pins

6-in. x 1-in.

Hole Spacing

4-in.

Casters

5-in. x 2-in.

Material

Finish

Powder-Coated Charcoal/Orange

Material

2.75-in Steel Tubes

Weight

Lift Capacity

1 Ton (2,000 lb.)

Product Weight

317 lb.

Details

• Adjustable height
• Locking pins system
• Locking caster wheels
• All-steel construction
• Heavy-duty steel I-beam
• 102″ minimum height required for clearance

OPTIONAL ACCESSORIES:

• 840072 – 1 Ton Push Trolly
• 840073 – 2 Ton Push Trolly

View Product Manual
