Scratch and Dent – 60" XL Pallet Fork Frame – FINAL SALE Crafted

Product Overview

* Scratch and Dent items are not eligible for returns or warranty claims. *

* Scratch and Dent Deal – item may have cosmetic damage *

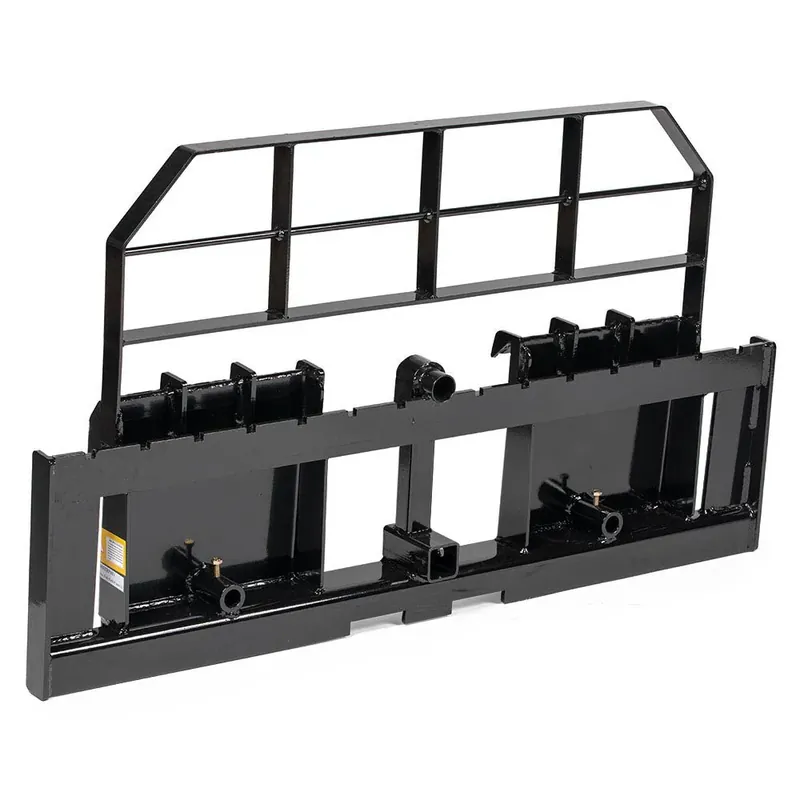

This all-in-one XL Pallet Fork Frame is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. Great for hauling wide loads, this durable frame is rated at a 5,000 LB capacity and is crafted with a see-through headache rack to increase its durability and capacity. The frame features a 2″ receiver hitch, a slotted carriage bar for mounting Class II pallet fork blades, and Conus 2 sleeves for installing hay bale spears. There is no need to worry about logs, hay bales, or other items falling back on your loader arms. All of these will come standard with this heavy-duty attachment. There is no need to have a frame for hay bales, one for moving pallets and debris, and another for moving trailers. Use this one frame to replace them all!

NOTE: The capacity drops 1,000 LB if lifting at the outmost sections of the extended frame

NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.

Specifications

Specifications

Frame Height

34.5-in.

Frame Length

60-in.

Frame Depth

6.75-in.

Fork Width Adjusts

6-in to 58-in.

Main Spear Sleeve

Conus 2

Finish

Powder-Coated Charcoal

Material

Steel

Weight Capacity*

5,000 lb.

Frame Weight

224 lb.

Details

• ‍Universal Skid Steer Quick Tach Mounting System
• Carriage Bars and Hay Spear Sleeves are already installed
• Standard 2″ trailer receiver hitch is welded to the frame
• All in one frame design for moving pallets, large round hay bales, and trailers
• Accepts Class II Pallet Fork Blades (sold separate)
• Accepts a Conus 2 Hay Bale Spear (sold separate)
• Accepts a pair of 17.5″ Stabilizer Spears (sold separate)
• *NOTE: The capacity drops 1,000 LB if lifting at outmost sections of the extended frame

View Product Manual
