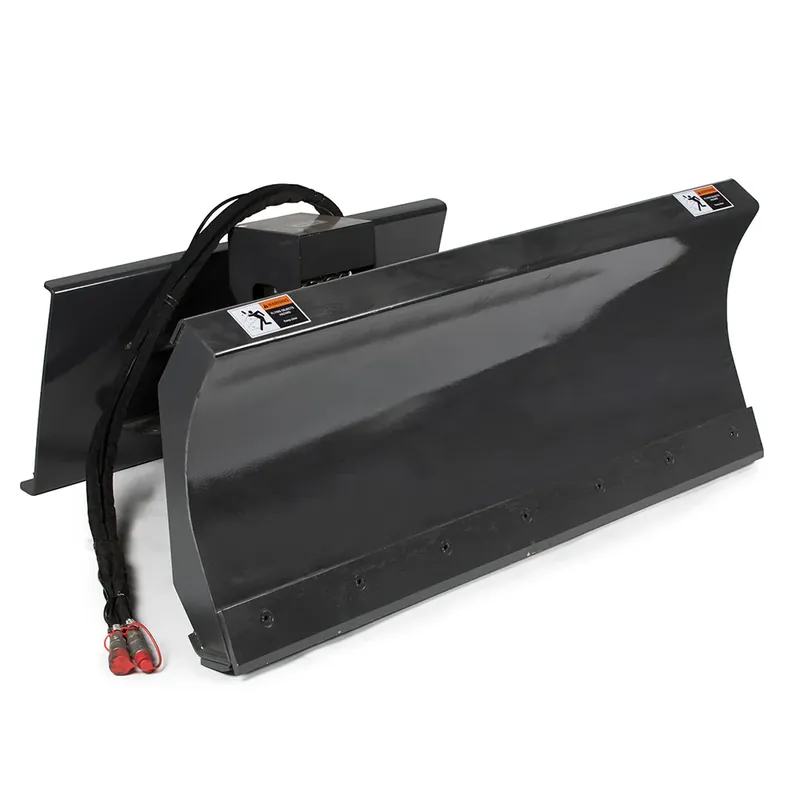

Scratch and Dent, 72" 6-Way Dozer Blade Premium

Product Overview

* Scratch and Dent items are not eligible for returns or warranty claims. *
* Scratch and Dent Deal – item may have cosmetic damage and/or missing hardware *

Made for long-lasting performance, the 6-Way Dozer Blade is built for heavy-duty operations, like pushing dirt, rock, and rubble. With an extended tilt range, this hydraulic design gives you full control – lift and curl the blade vertically, angle it side-to-side, and tilt up to 10-degrees in either direction.

Reinforced with a sturdy box frame, the deep-dish moldboard churns through soil, handling high volumes with ease. A reinforced box frame adds strength to the moldboard’s cutting edge for enhanced performance.

Compatible with any skid steer, tractor, or loader using a Universal Skid Steer Quick Tach, this attachment connects fast and holds firm.

NOTE: To operate this implement, this will need to be connected to a 12V power source.

Specifications

Specifications

Overall Height

27.5-in.

Overall Width

72-in.

Overall Depth

35-in.

Cutting Edge Dimensions

72-in. x 5.5-in x 5/8-in.

Max Tilt

+/- 10-degrees

Max Turning Angle

+/- 30-degrees

Max Pressure

3,000 PSI

Material

Finish

Powder-Coated Grey

Material

Cold-Rolled Steel

Weight

Product Weight

1,200 lb.

Details

• ‍Universal Skid Steer Style Quick Tach System
• Angle up to 30-degrees
• Tilt up to 10-degrees
• Curved cold-rolled steel moldboard
• Reinforced for maximum durability
• Reversible and replaceable bolt-on cutting edge
• Function controller that rotates up/down and left/right
• Hoses and flat-faced couplers included
• Greaseable bushings

REPLACEMENT PARTS:

• 191614 – 72″ Cutting Edge Kit Fits 6-Way Dozer Blade
• 191615 – 84″ Cutting Edge Kit Fits 6-Way Dozer Blade

View Product Manual
