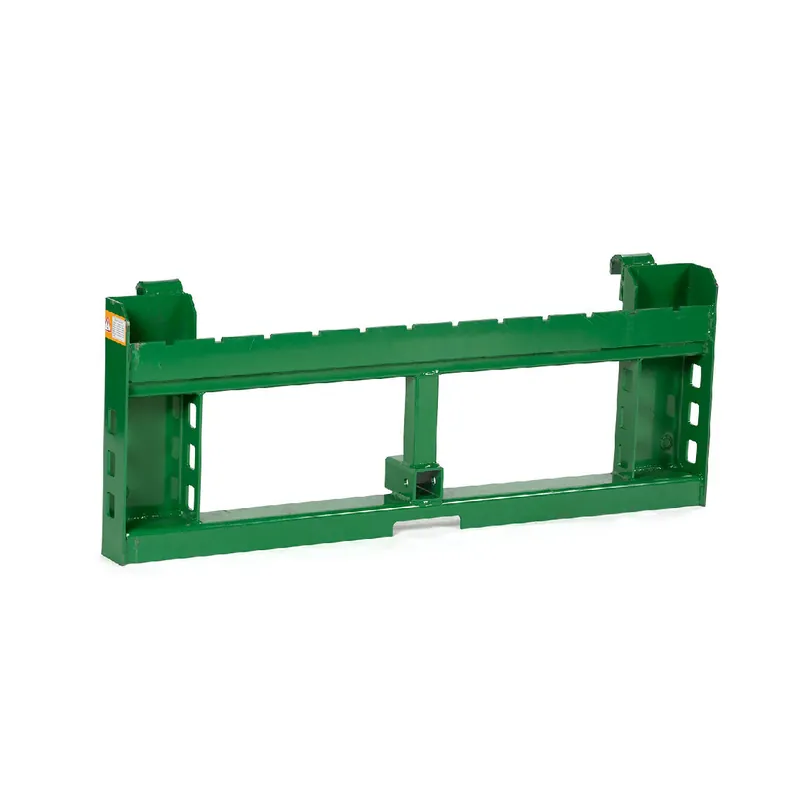

Scratch and Dent, Economy Series Pallet Fork Frame Seasonal Sale

Product Overview

* Scratch and Dent items are not eligible for returns or warranty claims. *

* Scratch and Dent Deal – item may have cosmetic damage *

This pallet fork frame will handle most lifting and light weight towing tasks without taxing your machines power or lift capacity.

Details

• The lightweight steel frame is designed to be the most efficient fork attachment out there. The integrated hitch receiver is perfect for moving trailers and other equipment around without having to change implements. The attachment will fit 200, 300 ,400, 500 loaders with a John Deere quick tach.
• FRAME ONLY
• Fits John Deere
• Total Capacity: 3,000 lbs
• Top pin set fits H120, D120, 210, 200x, 200cx, 300cx, 300x, 305, 400x, 400cx, 410, 419, 420, 430, 440, & 460 series loaders.
• Bottom pin set fits 500, 510, 520, 521, 540, 541, & 542 series Ag loaders.
• Does not fit any loaders equipped with the Global/Euro style or universal Skid Steer style mount.
• Specifications:
• Weight: 102 LB
• Width: 50.12″
• Height: 19.75″
• Designed To Fit John Deere Hook and Pin Style CarriersTo connect to an attachment, your loader arms will slide under the top hooks. The bottom pins on your attachment will slide into the bottom of the loader arm and will be secured using a cotter pin. This connection is found on most 200, 300, 400, and 500 series John Deere loaders.
• The following John Deere Loader Numbers are compatible:D120, D160, D170, H120, H130, H140, 120R, 200X, 200CX, 220R, 300X, 300CX, 300E, 300R, 305, 320R, 400X, 400CX, 410, 419, 420, 440, 440R, 460, 500, 510, 512, 520, 521, 540, 541, 542, 553

View Product Manual
