Scratch and Dent, Fine Grade Skeleton Rock Grapple Rake | 60" Seasonal Sale

Product Overview

* Scratch and Dent items are not eligible for returns or warranty claims. *
* Scratch and Dent Deal – item may have cosmetic damage and/or missing hardware *

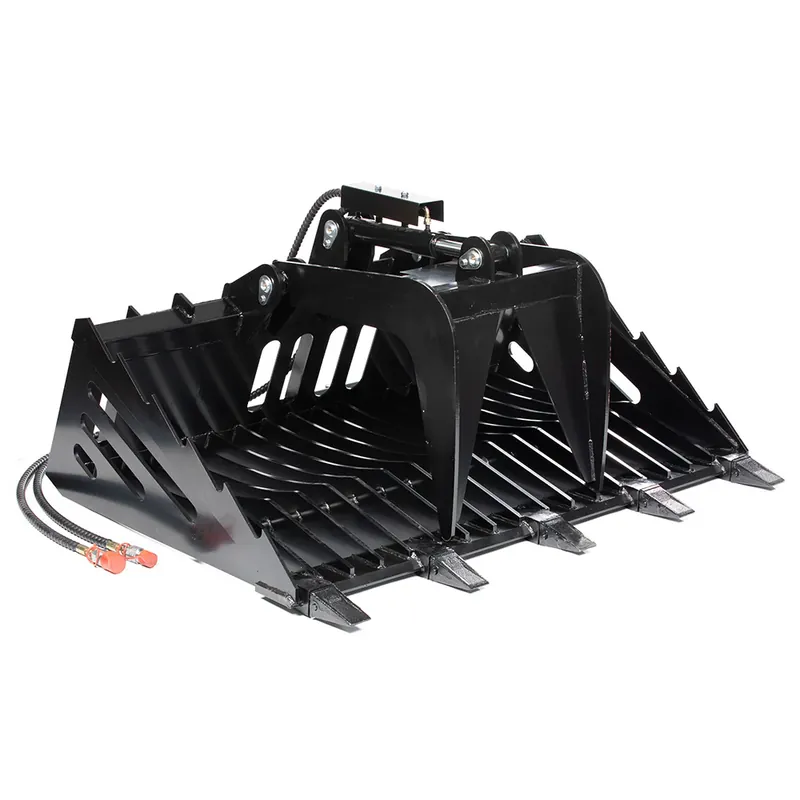

This grapple rake is perfect for moving rocks, preparing soil for planting, and sifting debris from dirt or sand. Powered by 3,000 PSI hydraulic cylinders, it effortlessly lifts and moves almost anything in its path. It also includes cylinder covers for added protection. The rugged skeleton frame is reinforced with serrated cutting edges and features an open design with a deep-well rock dam. Tines spaced 3″ apart hold rocks securely while dirt falls through. The front cutting edge is equipped with bolt-on bucket teeth, making it ideal for digging through tough dirt, gravel, or sand.

With a universal skid steer connection, this fine-grade model handles jobs up to 3,500 LB with ease. It’s the perfect tool for sifting through soil, sand, and other materials while keeping larger rocks and debris in check.

Specifications

Specifications

Jaw Opening

35.5-in.

Overall Width

61-in.

Overall Depth

51.5-in.

Inside Width

60-in.

Inside Depth

38-in.

Top Teeth Thickness

0.375-in.

Spacing Between Tines

3-in.

Bottom Tine Thickness

0.5-in.

Side Cutting Edge Thickness

0.5-in.

Material

Finish

Powder-Coated Black

Material

Steel

Weight

Min Loader Rated Operating Capacity

1,698 lb.

Max Loader Rated Operating Capacity

3,500 lb.

Product Weight

849 lb.

Details

• ‍‍Universal Skid Steer Quick Tach Mounting System
• ‍‍Rock dam and notch holds the rocks securely
• ‍‍Fine grade open-tined bottom spaced 3″ apart
• ‍‍Reinforced side cutters and cutting edge
• ‍‍Frame is built with 3″ x 3″ steel tubing
• ‍‍2.5″ bore x 8″ stroke hydraulic cylinders
• ‍‍Replaceable teeth
• ‍‍Hoses and flat-faced couplers included

REPLACEMENT PARTS:

• 125049 – 3 Pack Replacement LW80 OWM Bucket Tooth Kit
