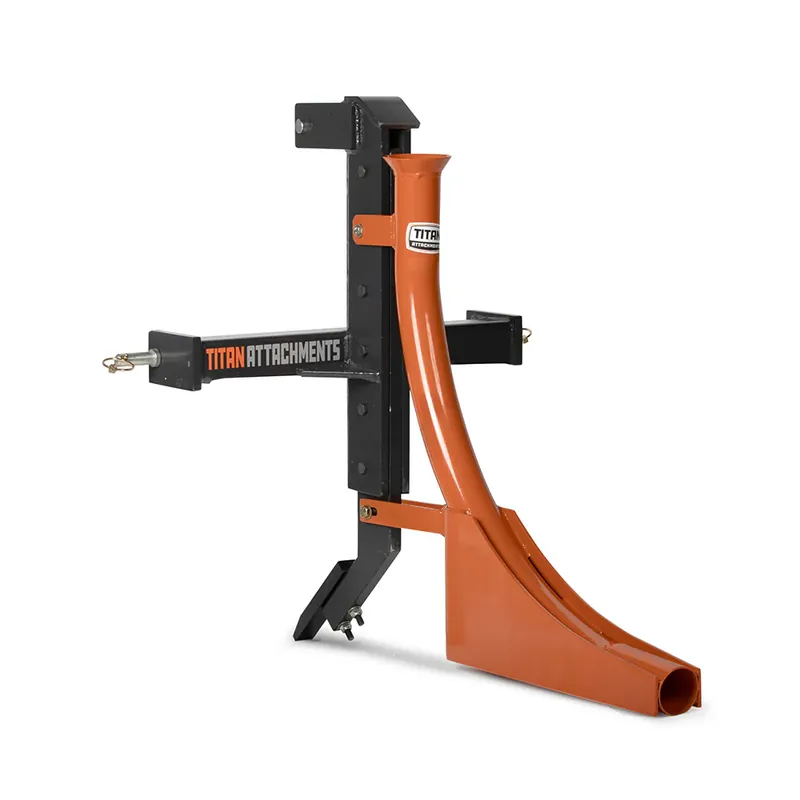

Single Tine Subsoiler with Optional Pipelayer Attachment In Demand

Choose Optional Pipelayer Attachment:Subsoiler
This 3 Point Single Tine Ripper Subsoiler features a reversible hardened steel tooth designed to break through hard, low ground where water accumulates.

Product Overview

The Single Tine Subsoiler rips through hard, compacted ground to prevent root rot caused by waterlogged soil, while promoting deeper root growth and better access to nutrients for stronger, healthier plants. Combined with the optional pipe layer attachment, it makes quick work of installing underground wire, waterlines, and pipes 12″ below the surface in a single pass—a gamechanger for anyone who has been manually digging trenches.

Built for Category 1, 3 Point hitch tractors, this rugged attachment has a thick, reinforced steel frame and tine with multiple depth settings. The tine has locking holes for added support and reaches up to 33″ deep, while the heat-treated, reversible scarifier tooth plows through tough soil. Lower lift pins and top link pin included.

The inside diameter of the pipe layer is 70mm (2.75″) and accepts polyethylene pipes up to 50mm (2″) while the tubing features a 2.5″ opening to feed piping and wires with ease.

NOTE: True subsoiling depth varies depending on how low your 3 Point hitch is to the ground. Check your tractor specifications before purchasing to ensure you can reach the desired depth.

Specifications

Specifications

Overall Height

41-in.

Overall Width

32.5-in.

Overall Depth

10-in.

Shank Length

8.5-in.

Shank Width

1.5-in.

Shank Thickness

1-in.

Shank Position

Fixed

Digging Depth Ranges

21-in. to 33-in.

Max Horsepower

35 HP

Material

Finish

Powder-Coated Charcoal

Material

Steel

Weight

Product Weight

113 lb.

Details

• Compatible with Category 1, 3 Point Hitches
• Titan quick hitch compatible
• Includes Category 1 Hitch pins
• Four adjustable settings in 4″ increments from 21″ to 33″
• Adjustable and reversible forged and heat-treated scarifier tooth
• Strong steel tine designed to break hard ground
• Improve drainage and allow roots to grow deeper without saturation
• Accepts 50mm (2″) poly pipe
• Installation hardware included

View Product Manual
