Standard Series 3 Point Rear Box Blade Scraper & Grader Price Drop

Choose Box Blade Size:4′
The 4 FT Box Blade Attachment is an essential lawn tractor implement intended for various jobs, including light-duty ripping, finish grading, and backfilling.Connection Type : 3 Point Hitch

Product Overview

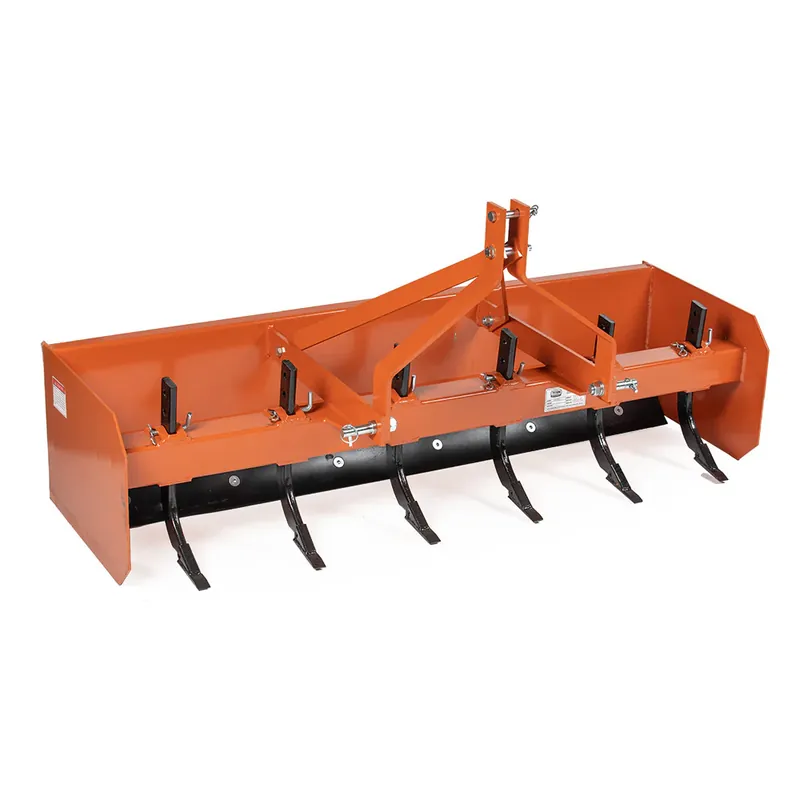

This Box Blade Scraper is truly a triple threat – it digs, levels, and even pushes dirt around like a mini bulldozer. Whether you are working on a garden, tackling a construction project, managing farmland, or doing some landscaping, this tool makes the job easier.

It comes equipped with scarifier teeth and heavy-duty cutting edges. Use the scarifiers to break up tough ground, then let the cutting edges level it out. For added pushing power, use the back of the cutting edge and the roll-formed moldboard. To finish the job, flip the blade and drag it back over the same area for a clean, smooth surface. The cutting edges are curved, reversible, and made from hardened steel – use the front edge for grading and the back edge for backfilling.

Built with sturdy 4″ x 4″ square tubing for support, this box blade hooks up to a pin-style 3 Point hitch and works with both Category 1 and Category 0 tractors.

NOTE: We will need your phone number to schedule delivery with the trucking company.

Specifications

Specifications

Overall Height

34.5-in.

Overall Width

48.75-in.

Overall Depth

29.5-in.

Scarifier Dimensions

18.25-in. x 1.38-in.

Scarifier Spacing

12-in.

Scarifier Quantity

4

Moldboard Length

48-in.

Brace Thickness

12mm

Side Panel Thickness

6.25mm

Power

Machine HP Rating

45HP

Material

Finish

Powder-Coated Orange

Material

Steel

Weight

Product Weight

300 lb.

Details

• ‍Compatible with Category 0 and 1, 3 Point Hitches
• Pin-style 3 Point hitch
• 4″ x 4″ square tubing shank support
• Adjustable and replaceable scarifier ripper teeth
• Reversible and replaceable, curved cutting edges
• Top link pin included

REPLACEMENT PARTS:

• 191419 – 18″ Replacement Shank

View Product Manual
