Standard Series Hay Frame Attachment Trending
Home / Promotion / Standard Series Hay Frame Attachment Trending

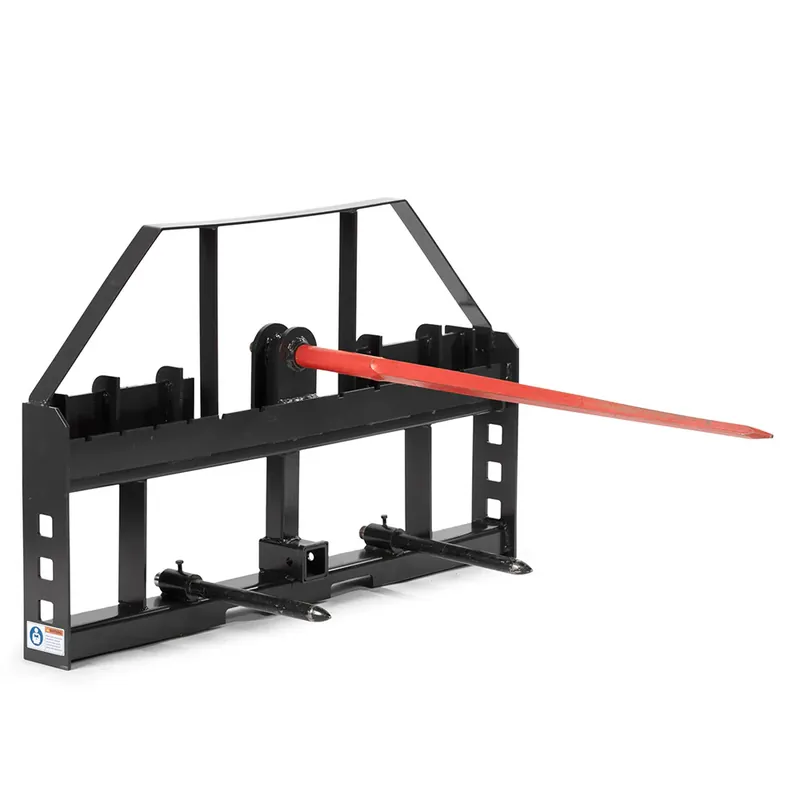

Standard Series Hay Frame Attachment Trending

Original price was: $524.96.Current price is: $209.98.

For orders under $59.99, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0054771 Category: Tag:
Share

Choose Hay Bale Spear Length:32″ Main Spear + 17.5″ Stabilizers
The Standard Series Pallet Hay Frame is equipped with a 32″ hay spear and two 17.5″ stabilizer spears designed to connect your skid steer with the SSQA.Connection Type : Universal Skid Steer Quick Tach

Product Overview

Rated at 4,000 LB, the all-in-one Standard Series Hay Frame boasts a higher weight capacity than the Economy Series frame and includes a see-through headache rack for added durability and safety. This frame features a slotted carriage bar and is available with or without Class II pallet fork blades, making it ideal for moving pallets, logs, and other debris. Additionally, it has a 2″ receiver hitch to transform your skid steer or tractor into a towing machine.

For moving large hay bales quickly, the frame includes one main Conus 2 hay spear sleeve and a pair of stabilizer spear sleeves welded to the frame (spears sold separately). This attachment has a Universal skid steer connection and is compatible with any skid steer or tractor equipped with an SSQA system.

NOTE: We will need your phone number to schedule delivery to avoid delays.

Specifications

Specifications

Frame Height

31-in.

Frame Width

50.5-in.

Frame Depth

8-in.

Main Spear Sleeve

Conus 2

Main Spear Overall Length

32-in.

Stabilizer Spear Length

17.5-in.

Upper to Lower Rail

16-in.

Receiver Hitch Dimensions

2-in. x 2-in.

Material

Frame Finish

Powder-Coated Charcoal

Frame Material

Steel

Weight

Frame Weight Capacity

4,000 lb.

Spear Weight Capacity

3,000 lb.

Main Spear Weight

18 lb.

Stabilizer Spear Pair Weight

12 lb.

Frame Weight

144 lb.

Details

  • ‍Universal skid steer quick tach mounting system
  • ‍All-in-one frame design for moving pallets, large round hay bales, and trailers
  • ‍Features a see-through headache rack
  • ‍Features hay spear sleeves
  • ‍Features a 2″ receiver hitch
  • ‍Accepts Class 2 pallet fork blades (sold separate)
  • ‍Accepts one Conus 2 hay bale spear
  • ‍Accepts a pair of stabilizer spears
