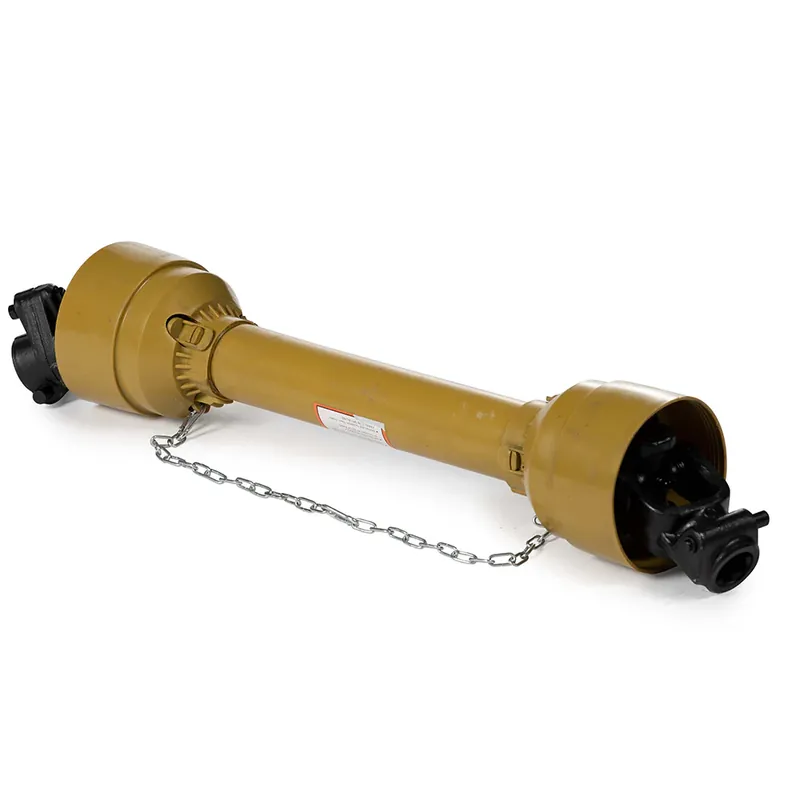

Trending PTO Shafts with Shear Bolt

Choose PTO Shaft Length (Retracted):31.5″
Transfer power between tractor and implement with the 31.5-inch retracted length PTO Shaft with included shear bolt and safety chain.Connection Type : Other

Product Overview

Meet your driveline needs with the Standard Series PTO Shafts featuring a retracted and extended length for different sized implements. These various length shafts are compatible with a tractor power of up to 35 HP at 540 RPM and operate in rotational motion when transferring energy from tractor to implement. Included with the Shaft are the shear bolts and safety chains that attach to the exterior of the PTO Shaft. Easy to install and can be cut to your desired length.

Specifications

Specifications

Max Length

43-in.

Retracted Length

31.5-in.

Spline End

1.375-in. z6

Tractor Power

35 HP

PTO Speed

540 RPM

PTO Type

Shear Bolt PTO

Shear Bolt Size

M8x50 Grade 8.8

Product Weight

22 lb.

Details

• Quick-disconnect 1-3/8-in. x 6 spline on both ends
• Shear bolts included
• Safety chain included
• See compatible list below

31.5″ SHAFT COMPATIBLE WITH:

• 198265 – WCBX42S_IM
• 198268 – WCBX62S_IM
• 191522 – 155FLAIL
• 191523 – 175FLAIL
• 191524 – 185FLAIL
• 191656 – FM48v1b
• 191682 – JDFM48v1b

35.5″ SHAFT COMPATIBLE WITH:

• 191657 – FM60v1b
• 191683 – JDFM60v1b
• 191527 – 125FLAILSHFT
• 191528 – 155FLAILSHFT
• 191529 – 185FLAILSHFT

55.5″ SHAFT COMPATIBLE WITH:

• 191519 – 125FLAILDB
• 191520 – 145FLAILDB
• 191521 – 165FLAILDB

View Product Manual
