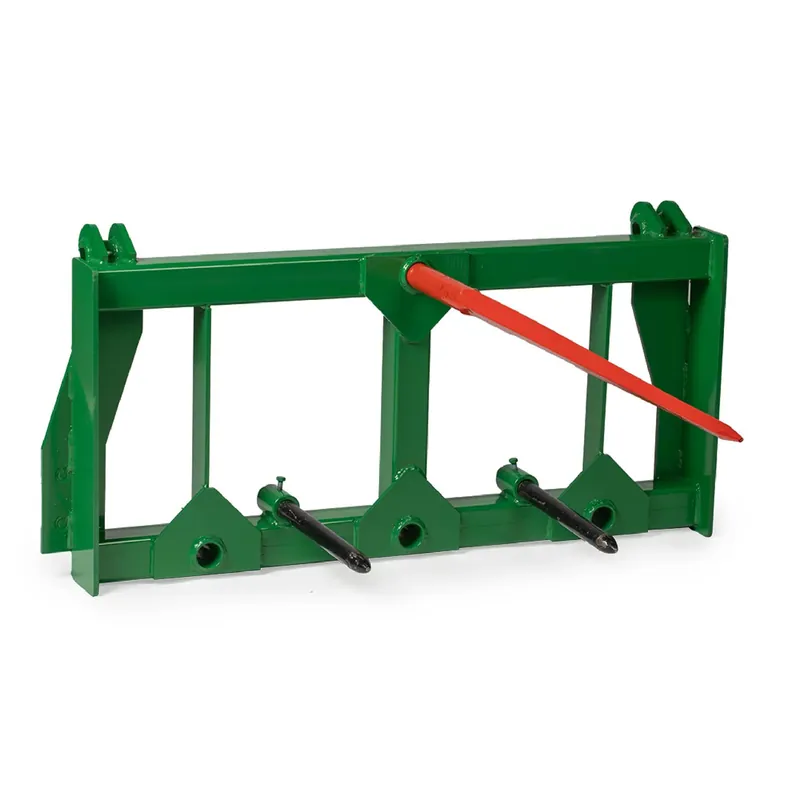

Trusted Brand HD Hay Frame Attachment with Stabilizers, Fits John Deere

Choose Hay Bale Spear Length:Frame + 39″ Spear
The Hay Frame holds a 4,000 LB rating and includes a 39″ hay spear along with two 17.5″ stabilizer spears.Connection Type : John Deere Hook & Pin

Product Overview

The heavy-duty Hay Frame Attachment fits 200, 300, 400, and 500 series John Deere tractors. Ideal for transporting large hay bales, it boasts a 4,000 LB load capacity and a backguard-free design for optimal spear placement visibility. With four Conus 2 sleeves, two stabilizer sleeves, and a sleek powder-coat finish, this durable frame supports hay bale spears. Its robust weight capacity enables easy movement and stacking of multiple hay bales, round or square. A valuable tool for feeding horses, cows, and other animals on the farm or ranch.

The maximum weight that can be supported is determined by the number of C2 hay bale spears installed on the hay frame attachment. The frame itself has a maximum weight capacity of 4,000 pounds.
NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.

Specifications

Specifications

Frame Overall Height

25.5-in.

Frame Overall Width

51.5-in.

Frame Overall Depth

6-in.

Main Spear Sleeve

Conus 2

Main Spear Overall Length

39-in.

Main Spear Diameter

1.75-in. tapered

Stabilizer Spear Length

17.5-in.

Stabilizer Spear Diameter

1.25-in.

Frame Finish

Powder-Coated Green

Material

3-in. Steel Tubing

Frame Weight Capacity

4,000 lb.

Spear Weight Capacity

3,000 lb.

Main Spear Weight

18 lb.

Stabilizer Spear Weight

6 lb. each

Frame Weight

137 lb.

Details

• ‍Compatible with John Deere Hook and Pin
• Designed to move hay bales around the farm or ranch
• Four Conus 2 hay sleeves and two stabilizer sleeves are installed
• Frame supports up to 4,000 LB load capacity
• Top pin set fits H120, D120, 210, 200x, 200cx, 300cx, 300x, 305, 400x, 400cx, 410, 419, 420, 430, 440, 460 series loaders
• Does NOT fit any loaders equipped with the Global/Euro style or universal Skid Steer style mount
