USA Made Standard Series Hay Frame Attachment, Fits John Deere Global Euro Super Sale

Choose Hay Bale Spear Length:32″ Main Spear + 17.5″ Stabilizers

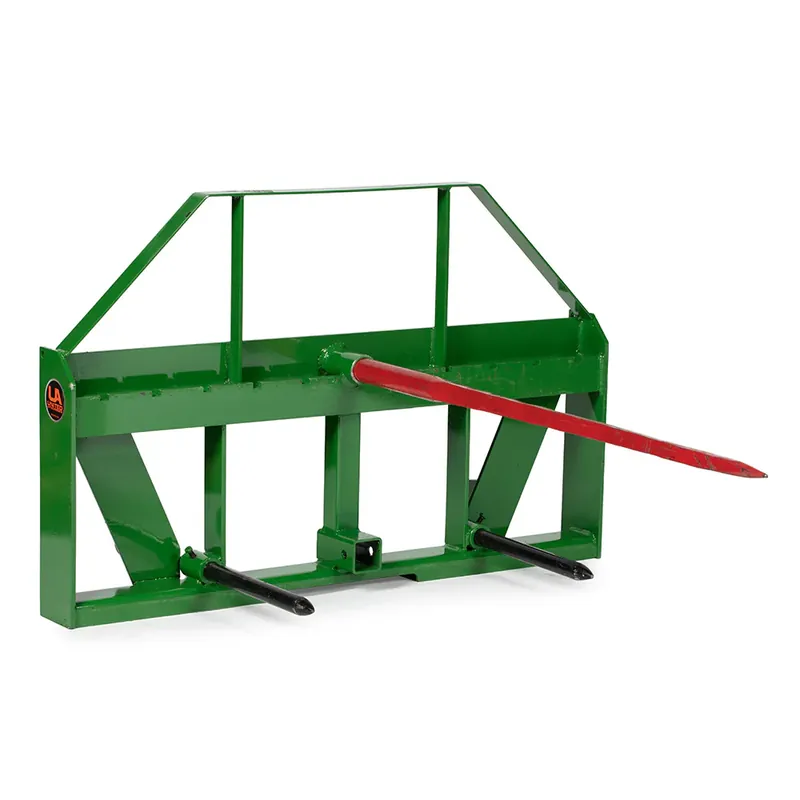

This USA made Hay Frame Attachment is equipped with a 32-inch Hay Bale Spear and Stabilizer Spears, and is compatible with John Deere Loaders equipped with the Global style mounting system.Connection Type : Global Euro

Product Overview

This all-in-one Standard Series USA Made Hay Frame Attachment is designed to fit John Deere tractors equipped with the Global style mounting system, also known as the Euro mounting system. The hay frame attachment features a 2″ receiver hitch and sleeves for installing hay bale spears and slotted carriage bars for mounting Class II pallet fork blades. A see-through headache rack is welded to the frame to increase its durability and capacity and add security to your loader arms. No need to worry about logs, hay bales, and other items that are being transported from falling back on your loader arms. All of these will come standard with this hay frame attachment. There is no need to have a frame for hay bales, one for moving pallets and debris, and another for moving trailers. Use this one frame to replace them all!

NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.

Specifications

Specifications

Overall Frame Height

29.5-in.

Overall Frame Width

46-in.

Overall Frame Depth

10-in.

Main Spear Sleeve

Conus 2

Main Spear Overall Length

32-in.

Main Spear Diameter

1.75-in. tapered

Stabilizer Spear Length

17.5-in.

Stabilizer Spear Diameter

1.25-in.

Fork Width Adjusts

6-in to 44-in.

Upper to Lower Rail

16-in.

Frame Finish

Powder-Coated Green

Material

Steel

Frame Weight Capacity

4,500 lb.

Spear Weight Capacity

3,000 lb. per pair

Main Spear Weight

18 lb.

Stabilizer Spear Pair Weight

12 lb.

Frame Weight

138 lb.

Details

• ‍Proudly made in the USA
• Fits John Deere Global Euro style mounting
• Safely move hay bales with the added stability of a headache rack
• Carriage Bars and Hay Spear Sleeves are already installed
• Standard 2-inch trailer receiver hitch is welded to the frame
• All in one frame design for moving pallets, large round hay bales, and trailers
• Accepts Class II Pallet Fork Blades (sold separate)
• Included: One 32-inch Conus 2 Hay Bale Spear
• Included: Pair of 17.5-inch Stabilizer Spears
• Not compatible with the John Deere hook and pin or SSQA

View Product Manual
